1 - Creating a blank IDF#
First import the IDF class from pyIBA (see Installation)
[1]:
# if pyIBA has been installed with pip3,
# the above 4 lines can be removed
import sys
from os.path import abspath
path_pyIBA = abspath('../../../..')
sys.path.insert(0, path_pyIBA)
# import pyIBA
from pyIBA import IDF
To create a new IDF, we first create a blank IDF object:
[2]:
idf_file = IDF()
Adding spectrum data#
We now data to this object. Adding a RBS spectrum is possible via two ways:
load the data manually (e.g. the result of some analysis) and use
set_spectrum_data(data_x, data_y)load the data directly from a file using
set_spectrum_data_from_file(path_to_file)Note: To see the documentation of a method in python you can use help(method) as shown below. Moreover, in jupyter notebooks you can use shift + tab while the cursor is inside the method to pull its documentation.
[3]:
help(idf_file.set_spectrum_data_from_file)
Help on method set_spectrum_data_from_file in module pyIBA.main_idf:
set_spectrum_data_from_file(file_name, save_file_name=True, mode='channels vs yield', spectra_id=0, simulation=False) method of pyIBA.IDF.IDF instance
Read the spectrum data from the file and sets it on the IDF file.
Example:
Load experimental data from file and plot it (see also ``self.get_dataxy()`` and
``self.get_spectrum_file_name()``::
#create a blank IDF file
idf_file = IDF()
#set the spectrum data from the txt file
idf_file.set_spectrum_data_from_file(path_to_exp_data.txt)
#load and plot the data using the file name as label
xx, yy = self.get_dataxy()
plt.figure()
plt.plot(xx, yy, label = idf_file.get_spectrum_file_name())
plt.legend()
Args:
file_name (str): Path to the file with the data
save_file_name (bool, optional, default = True): If True, saves the original file name
mode (str, optional, default = 'channels vs yield'): Mode of the data file options:
mode = 'channels vs yield' if txt file has two columns (xx, yy)
mode = '8 columns' if txt file has 8 columns with yields and assumes linear xx-scale
spectra_id (int, optional): ID of the spectrum to change
simulation (bool, optional): Not used as of now
Returns:
DOM Element or None: The XML entry of spectrum[spectra_id].
using set_spectrum_data()#
As an example, we will load the spectrum data from a two column file using numpy.loadtxt():
[4]:
import numpy as np
[5]:
path_data = 'RBS2PT50CO50_30.odf'
data = np.loadtxt(path_data)
data_x = data[:,0]
data_y = data[:,1]
In fact, we can also use the auxiliary function pyIBA.auxiliar.load_spectrum_from_file(path_to_file) to obtain the raw data from a file:
[6]:
from pyIBA.auxiliar import load_spectrum_from_file
[7]:
data_x, data_y = load_spectrum_from_file(path_data)
Either way, once you have you x, y data you add it to the IDF object using:
[8]:
idf_file.set_spectrum_data(data_x, data_y);
using set_spectrum_data_from_file()#
set_spectrum_data_from_file() is a much more efficient method of adding spectrum files to the IDF object. Repeating the example above:
[9]:
path_data = 'RBS2PT50CO50_30.odf'
idf_file.set_spectrum_data_from_file(path_data);
Note that set_spectrum_data_from_file is also saving the file name (save_file_name = True) and assumes mode = ‘channels vs yield’. If the input file has 8 columns with yields and assumes linear xx-scale, then use mode = ‘8 columns’.
To validate the process we can load the x,y data from the IDF object and plot it using matplolib:
[10]:
import matplotlib.pyplot as plt
[11]:
#load the x and y from the object:
xx, yy = idf_file.get_dataxy()
#create figure and plot it
plt.figure()
plt.plot(xx, yy)
plt.xlabel('Channels')
plt.ylabel('Counts')

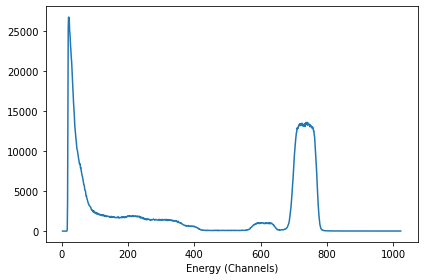

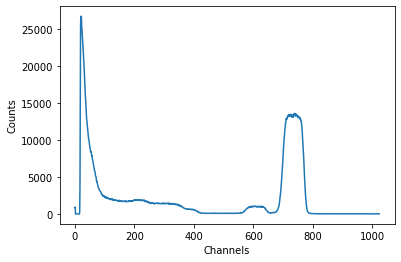

[11]:
Text(0, 0.5, 'Counts')
Adding beam parameters#
We now add the beam parameters:
[12]:
idf_file.set_beam_energy(2000)
idf_file.set_beam_energy_spread(20)
idf_file.set_beam_particles('4He')
idf_file.set_charge(5)
idf_file.set_geometry_type('IBM')
idf_file.set_incident_angle(30)
idf_file.set_scattering_angle(140)
idf_file.set_detector_solid_angle(11)
idf_file.set_energy_calibration(2.28, 105.5)
or, instead we can use set_geo_parameters() to add the all the parameters at once. For this, we first define a dictionary with the parameters:
[13]:
geo_params = {'beam_energy': 2000.0,
'beam_FWHM': 20.0,
'projectile': '4He',
'charge': 5,
'geometry': 'IBM',
'angles': ['30', '140'],
'dect_solid': '11',
'energy_calib': [2.28, 105.5]
}
idf_file.set_geo_parameters(geo_params)
Adding the sample details#
Elements#
We begin by defining the elements dictionary forming the sample and use set_elements() to add it to the IDF object (see also help(idf_file.set_elements)). In this example we have a sample with CoPt, SiO2 and Si.
[14]:
#define the elements dictionary
elements = {
#number of elements
'nelements':3,
#element 1
0: {'name': 'Co 1 Pt 1',
'density': '',
'concentration': ['0','1'],
'depth': ['0','1000']},
#element 2
1: {'name': 'Si 1 O 2',
'density': '',
'concentration': ['0','1'],
'depth': ['0','1000']},
#element 3
2: {'name': 'Si',
'density': '',
'concentration': ['0', '1'],
'depth': ['300','1e6']},
}
idf_file.set_elements(elements)
Depth profile#
Similar to the process above, to include the depth profile of the sample, we define first the profile dictionary and then load it into the IDF object using idf_file.set_profile(). Here, our sample has 3 layers - CoPt/SiO\(_2\)/Si. Therefore, the profile dictionary is:
[15]:
#dictionary defining the depth profile of the sample
profile_dic = {
'nlayers': '3',
'names': ['Co 1 Pt 1', 'Si 1 O 2', 'Si'],
0: {'thickness': 390, 'concentrations': [100, 0, 0]},
1: {'thickness': 550, 'concentrations': [ 0, 100, 0]},
2: {'thickness': 4000000, 'concentrations': [ 0, 0, 100]}
}
#add the profile to the IDF object
idf_file.set_profile(profile_dic)
Add a note#
It is also possible to add notes and turn IDF into a logbook.
[16]:
#define note
note = 'This file was created during Example 1, it relates to a RBS measurement of a CoPt/SiO2 sample.'
#add note to idf_file
idf_file.set_note(note)
#if you want to add more notes afterwards, it is possible to append them to the previous ones
note = 'Something I did after the first note'
idf_file.set_note(note, append=True)
#check the notes
print(idf_file.get_notes())
#it is also possible to define the author of the file
author = 'Miguel Sequeira'
idf_file.set_user(author)
['This file was created during Example 1, it relates to a RBS measurement of a CoPt/SiO2 sample.', 'Something I did after the first note']
Saving the IDF object#
Until this point, nothing has been saved into the disk. To save the idf_file object into the file, using the IDF file format, we use idf_file.save_idf().
[17]:
#define the path to the new file
path_to_save = 'idf_example1.xml'
#create the idf file
idf_file.save_idf(path_to_save);
Checking the file#
If you want to check the contents of the IDF object (or file), you use idf_file.printout_idf_file(). However, it is much more efficient to use the GUI IDFViewer (see Example A2).
[18]:
idf_file.print_idf_file()
=============== idf_example1 ===============
idf_example1.xml
Miguel Sequeira
------------------ Notes ------------------
This file was created during Example 1, it relates to a RBS measurement of a CoPt/SiO2 sample.
Something I did after the first note
------------------ Elements -----------------
nelements 3
- - - Element 0 - - -
name Co 1 Pt 1
density
concentration ['0', '1']
depth ['0', '1000']
- - - Element 1 - - -
name Si 1 O 2
density
concentration ['0', '1']
depth ['0', '1000']
- - - Element 2 - - -
name Si
density
concentration ['0', '1']
depth ['300', '1e6']
------------------ Profile -----------------
nlayers 2
names ['Co 1 Pt 1', 'Si 1 O 2', 'Si']
- - - Layer 0 - - -
thickness 390
concentrations ['100', '0', '0']
- - - Layer 1 - - -
thickness 550
concentrations ['0', '100', '0']
- - - Layer 2 - - -
thickness 4000000
concentrations ['0', '0', '100']
-------- Spectrum 0 (RBS2PT50CO50_30.odf) --------
Technique RBS
(4He, 4He)
Projectile 4He
Beam energy 2000.0
Beam fwhm 20.0
Geometry IBM
Angles ['30', '140']
Dect solid 11
Energy calib [2.28, 105.5]
Charge 5
If you want to directly check the XML file, you can set mode = 'XML':
[19]:
idf_file.print_idf_file(mode='XML')
<?xml version="1.0" ?>
<idf xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://idf.schemas.itn.pt" xmlns:idf="http:/idf.schemas.itn.pt" xmlns:ndf="http:/ndf.schemas.itn.pt" xsi:schemaLocation="http:/idf.schemas.itn.pt idfv1.xsd http://ndf.schemas.itn.pt ndfv1.xsd">
<users>
<user>Miguel Sequeira</user>
</users>
<notes>
<note>This file was created during Example 1, it relates to a RBS measurement of a CoPt/SiO2 sample.</note>
<note>Something I did after the first note</note>
</notes>
<attributes>
<idfversion/>
<filename/>
<createtime/>
</attributes>
<sample>
<users>
<user/>
</users>
<notes>
<note/>
</notes>
<description/>
<structure>
<layeredstructure>
<nlayers>3</nlayers>
<layers>
<layer>
<layerthickness units="1e15at/cm2">390</layerthickness>
<layerelements>
<layerelement>
<name>Co 1 Pt 1</name>
<concentration units="fraction">100</concentration>
</layerelement>
<layerelement>
<name>Si 1 O 2</name>
<concentration units="fraction">0</concentration>
</layerelement>
<layerelement>
<name>Si</name>
<concentration units="fraction">0</concentration>
</layerelement>
</layerelements>
</layer>
<layer>
<layerthickness units="1e15at/cm2">550</layerthickness>
<layerelements>
<layerelement>
<name>Co 1 Pt 1</name>
<concentration units="fraction">0</concentration>
</layerelement>
<layerelement>
<name>Si 1 O 2</name>
<concentration units="fraction">100</concentration>
</layerelement>
<layerelement>
<name>Si</name>
<concentration units="fraction">0</concentration>
</layerelement>
</layerelements>
</layer>
<layer>
<layerthickness units="1e15at/cm2">4000000</layerthickness>
<layerelements>
<layerelement>
<name>Co 1 Pt 1</name>
<concentration units="fraction">0</concentration>
</layerelement>
<layerelement>
<name>Si 1 O 2</name>
<concentration units="fraction">0</concentration>
</layerelement>
<layerelement>
<name>Si</name>
<concentration units="fraction">100</concentration>
</layerelement>
</layerelements>
</layer>
</layers>
</layeredstructure>
</structure>
<spectra>
<spectrum>
<notes>
<note/>
<note> </note>
<note> </note>
<note/>
</notes>
<beam>
<beamparticle>4He</beamparticle>
<beamZ/>
<beammass units="amu"/>
<beamenergy units="keV">2000.0</beamenergy>
<beamfluence units="uC"/>
<beamenergyspread mode="FWHM" units="keV">20.0</beamenergyspread>
<charge>5</charge>
</beam>
<geometry>
<geometrytype>IBM</geometrytype>
<incidenceangle units="degree">30</incidenceangle>
<scatteringangle units="degree">140</scatteringangle>
<exitangle units="degree"/>
</geometry>
<detection>
<detector>
<detectortype/>
<solidangle units="msr">11</solidangle>
</detector>
</detection>
<calibrations>
<energycalibrations>
<energycalibration>
<calibrationmode>energy</calibrationmode>
<calibrationparameters>
<calibrationparameter units="keV">105.5</calibrationparameter>
<calibrationparameter units="keV/channel">2.28</calibrationparameter>
</calibrationparameters>
<calibrationion>4He</calibrationion>
</energycalibration>
<energycalibration/>
</energycalibrations>
</calibrations>
<reactions>
<technique/>
<reactionlist>
<reaction>
<initialtargetparticle></initialtargetparticle>
<incidentparticle>4He</incidentparticle>
<exitparticle>4He</exitparticle>
<finaltargetparticle></finaltargetparticle>
<reactionQ units="keV"></reactionQ>
</reaction>
</reactionlist>
</reactions>
<data>
<simpledata>
<xaxis>
<axisname>energy</axisname>
<axisunit>channel</axisunit>
</xaxis>
<yaxis>
<axisname>yield</axisname>
<axisunit>counts</axisunit>
</yaxis>
<x>0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0 101.0 102.0 103.0 104.0 105.0 106.0 107.0 108.0 109.0 110.0 111.0 112.0 113.0 114.0 115.0 116.0 117.0 118.0 119.0 120.0 121.0 122.0 123.0 124.0 125.0 126.0 127.0 128.0 129.0 130.0 131.0 132.0 133.0 134.0 135.0 136.0 137.0 138.0 139.0 140.0 141.0 142.0 143.0 144.0 145.0 146.0 147.0 148.0 149.0 150.0 151.0 152.0 153.0 154.0 155.0 156.0 157.0 158.0 159.0 160.0 161.0 162.0 163.0 164.0 165.0 166.0 167.0 168.0 169.0 170.0 171.0 172.0 173.0 174.0 175.0 176.0 177.0 178.0 179.0 180.0 181.0 182.0 183.0 184.0 185.0 186.0 187.0 188.0 189.0 190.0 191.0 192.0 193.0 194.0 195.0 196.0 197.0 198.0 199.0 200.0 201.0 202.0 203.0 204.0 205.0 206.0 207.0 208.0 209.0 210.0 211.0 212.0 213.0 214.0 215.0 216.0 217.0 218.0 219.0 220.0 221.0 222.0 223.0 224.0 225.0 226.0 227.0 228.0 229.0 230.0 231.0 232.0 233.0 234.0 235.0 236.0 237.0 238.0 239.0 240.0 241.0 242.0 243.0 244.0 245.0 246.0 247.0 248.0 249.0 250.0 251.0 252.0 253.0 254.0 255.0 256.0 257.0 258.0 259.0 260.0 261.0 262.0 263.0 264.0 265.0 266.0 267.0 268.0 269.0 270.0 271.0 272.0 273.0 274.0 275.0 276.0 277.0 278.0 279.0 280.0 281.0 282.0 283.0 284.0 285.0 286.0 287.0 288.0 289.0 290.0 291.0 292.0 293.0 294.0 295.0 296.0 297.0 298.0 299.0 300.0 301.0 302.0 303.0 304.0 305.0 306.0 307.0 308.0 309.0 310.0 311.0 312.0 313.0 314.0 315.0 316.0 317.0 318.0 319.0 320.0 321.0 322.0 323.0 324.0 325.0 326.0 327.0 328.0 329.0 330.0 331.0 332.0 333.0 334.0 335.0 336.0 337.0 338.0 339.0 340.0 341.0 342.0 343.0 344.0 345.0 346.0 347.0 348.0 349.0 350.0 351.0 352.0 353.0 354.0 355.0 356.0 357.0 358.0 359.0 360.0 361.0 362.0 363.0 364.0 365.0 366.0 367.0 368.0 369.0 370.0 371.0 372.0 373.0 374.0 375.0 376.0 377.0 378.0 379.0 380.0 381.0 382.0 383.0 384.0 385.0 386.0 387.0 388.0 389.0 390.0 391.0 392.0 393.0 394.0 395.0 396.0 397.0 398.0 399.0 400.0 401.0 402.0 403.0 404.0 405.0 406.0 407.0 408.0 409.0 410.0 411.0 412.0 413.0 414.0 415.0 416.0 417.0 418.0 419.0 420.0 421.0 422.0 423.0 424.0 425.0 426.0 427.0 428.0 429.0 430.0 431.0 432.0 433.0 434.0 435.0 436.0 437.0 438.0 439.0 440.0 441.0 442.0 443.0 444.0 445.0 446.0 447.0 448.0 449.0 450.0 451.0 452.0 453.0 454.0 455.0 456.0 457.0 458.0 459.0 460.0 461.0 462.0 463.0 464.0 465.0 466.0 467.0 468.0 469.0 470.0 471.0 472.0 473.0 474.0 475.0 476.0 477.0 478.0 479.0 480.0 481.0 482.0 483.0 484.0 485.0 486.0 487.0 488.0 489.0 490.0 491.0 492.0 493.0 494.0 495.0 496.0 497.0 498.0 499.0 500.0 501.0 502.0 503.0 504.0 505.0 506.0 507.0 508.0 509.0 510.0 511.0 512.0 513.0 514.0 515.0 516.0 517.0 518.0 519.0 520.0 521.0 522.0 523.0 524.0 525.0 526.0 527.0 528.0 529.0 530.0 531.0 532.0 533.0 534.0 535.0 536.0 537.0 538.0 539.0 540.0 541.0 542.0 543.0 544.0 545.0 546.0 547.0 548.0 549.0 550.0 551.0 552.0 553.0 554.0 555.0 556.0 557.0 558.0 559.0 560.0 561.0 562.0 563.0 564.0 565.0 566.0 567.0 568.0 569.0 570.0 571.0 572.0 573.0 574.0 575.0 576.0 577.0 578.0 579.0 580.0 581.0 582.0 583.0 584.0 585.0 586.0 587.0 588.0 589.0 590.0 591.0 592.0 593.0 594.0 595.0 596.0 597.0 598.0 599.0 600.0 601.0 602.0 603.0 604.0 605.0 606.0 607.0 608.0 609.0 610.0 611.0 612.0 613.0 614.0 615.0 616.0 617.0 618.0 619.0 620.0 621.0 622.0 623.0 624.0 625.0 626.0 627.0 628.0 629.0 630.0 631.0 632.0 633.0 634.0 635.0 636.0 637.0 638.0 639.0 640.0 641.0 642.0 643.0 644.0 645.0 646.0 647.0 648.0 649.0 650.0 651.0 652.0 653.0 654.0 655.0 656.0 657.0 658.0 659.0 660.0 661.0 662.0 663.0 664.0 665.0 666.0 667.0 668.0 669.0 670.0 671.0 672.0 673.0 674.0 675.0 676.0 677.0 678.0 679.0 680.0 681.0 682.0 683.0 684.0 685.0 686.0 687.0 688.0 689.0 690.0 691.0 692.0 693.0 694.0 695.0 696.0 697.0 698.0 699.0 700.0 701.0 702.0 703.0 704.0 705.0 706.0 707.0 708.0 709.0 710.0 711.0 712.0 713.0 714.0 715.0 716.0 717.0 718.0 719.0 720.0 721.0 722.0 723.0 724.0 725.0 726.0 727.0 728.0 729.0 730.0 731.0 732.0 733.0 734.0 735.0 736.0 737.0 738.0 739.0 740.0 741.0 742.0 743.0 744.0 745.0 746.0 747.0 748.0 749.0 750.0 751.0 752.0 753.0 754.0 755.0 756.0 757.0 758.0 759.0 760.0 761.0 762.0 763.0 764.0 765.0 766.0 767.0 768.0 769.0 770.0 771.0 772.0 773.0 774.0 775.0 776.0 777.0 778.0 779.0 780.0 781.0 782.0 783.0 784.0 785.0 786.0 787.0 788.0 789.0 790.0 791.0 792.0 793.0 794.0 795.0 796.0 797.0 798.0 799.0 800.0 801.0 802.0 803.0 804.0 805.0 806.0 807.0 808.0 809.0 810.0 811.0 812.0 813.0 814.0 815.0 816.0 817.0 818.0 819.0 820.0 821.0 822.0 823.0 824.0 825.0 826.0 827.0 828.0 829.0 830.0 831.0 832.0 833.0 834.0 835.0 836.0 837.0 838.0 839.0 840.0 841.0 842.0 843.0 844.0 845.0 846.0 847.0 848.0 849.0 850.0 851.0 852.0 853.0 854.0 855.0 856.0 857.0 858.0 859.0 860.0 861.0 862.0 863.0 864.0 865.0 866.0 867.0 868.0 869.0 870.0 871.0 872.0 873.0 874.0 875.0 876.0 877.0 878.0 879.0 880.0 881.0 882.0 883.0 884.0 885.0 886.0 887.0 888.0 889.0 890.0 891.0 892.0 893.0 894.0 895.0 896.0 897.0 898.0 899.0 900.0 901.0 902.0 903.0 904.0 905.0 906.0 907.0 908.0 909.0 910.0 911.0 912.0 913.0 914.0 915.0 916.0 917.0 918.0 919.0 920.0 921.0 922.0 923.0 924.0 925.0 926.0 927.0 928.0 929.0 930.0 931.0 932.0 933.0 934.0 935.0 936.0 937.0 938.0 939.0 940.0 941.0 942.0 943.0 944.0 945.0 946.0 947.0 948.0 949.0 950.0 951.0 952.0 953.0 954.0 955.0 956.0 957.0 958.0 959.0 960.0 961.0 962.0 963.0 964.0 965.0 966.0 967.0 968.0 969.0 970.0 971.0 972.0 973.0 974.0 975.0 976.0 977.0 978.0 979.0 980.0 981.0 982.0 983.0 984.0 985.0 986.0 987.0 988.0 989.0 990.0 991.0 992.0 993.0 994.0 995.0 996.0 997.0 998.0 999.0 1000.0 1001.0 1002.0 1003.0 1004.0 1005.0 1006.0 1007.0 1008.0 1009.0 1010.0 1011.0 1012.0 1013.0 1014.0 1015.0 1016.0 1017.0 1018.0 1019.0 1020.0 1021.0 1022.0 1023.0</x>
<y>891.0 917.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 2.0 230.0 3597.0 13150.0 25405.0 26793.0 26764.0 26617.0 25203.0 24821.0 24124.0 23189.0 22642.0 21849.0 21347.0 20604.0 19600.0 18742.0 17965.0 17018.0 16100.0 15525.0 14780.0 13873.0 13067.0 12643.0 12165.0 11663.0 11373.0 10871.0 10376.0 10176.0 10024.0 9705.0 9428.0 9152.0 8931.0 8675.0 8405.0 8436.0 8398.0 7891.0 7952.0 7613.0 7393.0 7247.0 6915.0 6814.0 6542.0 6347.0 6098.0 5812.0 5785.0 5543.0 5170.0 5084.0 5027.0 4666.0 4390.0 4424.0 4145.0 4008.0 3880.0 3679.0 3589.0 3407.0 3390.0 3238.0 3188.0 3139.0 3084.0 3029.0 2979.0 2788.0 2753.0 2613.0 2638.0 2600.0 2497.0 2427.0 2528.0 2379.0 2460.0 2476.0 2360.0 2254.0 2275.0 2199.0 2328.0 2315.0 2152.0 2215.0 2190.0 2236.0 2130.0 2128.0 2134.0 2153.0 2031.0 2029.0 2062.0 2077.0 2014.0 1969.0 2022.0 2027.0 1934.0 2013.0 1960.0 1966.0 1946.0 2033.0 1918.0 1866.0 1940.0 1851.0 1956.0 1839.0 1913.0 1869.0 1816.0 1850.0 1868.0 1877.0 1843.0 1835.0 1843.0 1811.0 1831.0 1761.0 1787.0 1728.0 1813.0 1751.0 1743.0 1847.0 1812.0 1775.0 1794.0 1730.0 1749.0 1779.0 1764.0 1717.0 1752.0 1714.0 1674.0 1690.0 1697.0 1714.0 1703.0 1685.0 1718.0 1731.0 1790.0 1663.0 1714.0 1686.0 1714.0 1667.0 1649.0 1698.0 1705.0 1703.0 1733.0 1700.0 1751.0 1679.0 1790.0 1774.0 1711.0 1761.0 1764.0 1697.0 1737.0 1691.0 1730.0 1762.0 1709.0 1798.0 1742.0 1786.0 1852.0 1864.0 1841.0 1909.0 1873.0 1873.0 1924.0 1824.0 1856.0 1908.0 1869.0 1830.0 1863.0 1828.0 1824.0 1887.0 1860.0 1945.0 1936.0 1827.0 1843.0 1836.0 1870.0 1901.0 1887.0 1913.0 1909.0 1814.0 1814.0 1804.0 1873.0 1810.0 1842.0 1855.0 1793.0 1802.0 1819.0 1865.0 1700.0 1805.0 1677.0 1739.0 1655.0 1702.0 1727.0 1666.0 1610.0 1688.0 1552.0 1598.0 1553.0 1610.0 1526.0 1551.0 1491.0 1468.0 1545.0 1443.0 1435.0 1499.0 1431.0 1450.0 1533.0 1471.0 1485.0 1496.0 1450.0 1457.0 1423.0 1350.0 1398.0 1383.0 1448.0 1415.0 1425.0 1418.0 1419.0 1442.0 1451.0 1516.0 1455.0 1455.0 1427.0 1367.0 1399.0 1439.0 1453.0 1456.0 1415.0 1416.0 1400.0 1388.0 1390.0 1379.0 1374.0 1447.0 1460.0 1416.0 1388.0 1458.0 1406.0 1387.0 1397.0 1442.0 1399.0 1391.0 1407.0 1463.0 1414.0 1398.0 1382.0 1402.0 1440.0 1418.0 1444.0 1421.0 1405.0 1353.0 1471.0 1375.0 1381.0 1320.0 1344.0 1448.0 1379.0 1354.0 1396.0 1374.0 1405.0 1348.0 1387.0 1362.0 1345.0 1337.0 1401.0 1366.0 1274.0 1318.0 1297.0 1323.0 1288.0 1316.0 1257.0 1284.0 1314.0 1286.0 1299.0 1233.0 1281.0 1210.0 1225.0 1181.0 1131.0 1195.0 1236.0 1079.0 1072.0 1074.0 1081.0 1044.0 1058.0 980.0 1028.0 1018.0 955.0 895.0 891.0 873.0 823.0 794.0 767.0 767.0 741.0 730.0 700.0 719.0 712.0 651.0 645.0 664.0 609.0 635.0 643.0 651.0 677.0 691.0 629.0 612.0 643.0 621.0 627.0 616.0 598.0 584.0 638.0 600.0 616.0 615.0 592.0 622.0 587.0 580.0 538.0 598.0 568.0 554.0 519.0 483.0 476.0 478.0 495.0 413.0 405.0 364.0 353.0 304.0 321.0 266.0 222.0 262.0 206.0 185.0 175.0 137.0 126.0 138.0 111.0 130.0 145.0 113.0 117.0 112.0 98.0 90.0 94.0 101.0 102.0 99.0 85.0 66.0 100.0 94.0 79.0 101.0 85.0 108.0 83.0 83.0 86.0 83.0 96.0 91.0 92.0 91.0 96.0 86.0 95.0 76.0 68.0 84.0 81.0 81.0 107.0 83.0 72.0 85.0 89.0 101.0 79.0 97.0 105.0 79.0 78.0 104.0 67.0 91.0 71.0 87.0 93.0 77.0 79.0 81.0 82.0 72.0 80.0 89.0 94.0 89.0 84.0 91.0 81.0 93.0 85.0 77.0 94.0 96.0 81.0 77.0 74.0 71.0 70.0 85.0 87.0 92.0 106.0 71.0 64.0 86.0 84.0 94.0 88.0 79.0 82.0 82.0 104.0 75.0 84.0 87.0 90.0 92.0 82.0 89.0 74.0 85.0 76.0 99.0 87.0 92.0 76.0 81.0 80.0 77.0 82.0 75.0 74.0 92.0 98.0 95.0 74.0 77.0 93.0 87.0 80.0 92.0 92.0 87.0 114.0 87.0 89.0 101.0 115.0 88.0 89.0 92.0 102.0 91.0 86.0 92.0 103.0 136.0 96.0 130.0 156.0 141.0 153.0 189.0 188.0 191.0 225.0 240.0 271.0 295.0 413.0 402.0 433.0 478.0 534.0 572.0 623.0 641.0 679.0 734.0 788.0 775.0 792.0 851.0 844.0 893.0 930.0 871.0 976.0 950.0 952.0 1011.0 973.0 1036.0 959.0 970.0 1025.0 951.0 959.0 999.0 1027.0 1004.0 1064.0 1033.0 1023.0 994.0 1015.0 1025.0 1050.0 1032.0 967.0 951.0 933.0 941.0 984.0 1049.0 992.0 947.0 946.0 1032.0 982.0 998.0 994.0 962.0 934.0 1036.0 964.0 980.0 1024.0 908.0 978.0 1017.0 958.0 956.0 1000.0 968.0 892.0 862.0 839.0 814.0 740.0 753.0 629.0 574.0 545.0 507.0 433.0 391.0 329.0 304.0 277.0 177.0 178.0 172.0 165.0 156.0 142.0 159.0 114.0 146.0 122.0 140.0 149.0 155.0 164.0 157.0 171.0 157.0 187.0 158.0 179.0 178.0 211.0 224.0 251.0 231.0 227.0 270.0 329.0 349.0 401.0 451.0 529.0 616.0 757.0 829.0 993.0 1127.0 1388.0 1782.0 2062.0 2412.0 2777.0 3160.0 3692.0 4165.0 4796.0 5501.0 6120.0 6626.0 7415.0 8073.0 8748.0 9539.0 10058.0 10541.0 11118.0 11551.0 11897.0 12326.0 12408.0 12898.0 12819.0 12960.0 12882.0 13115.0 13108.0 13320.0 13296.0 13415.0 13459.0 13219.0 13207.0 13391.0 13416.0 13248.0 13509.0 13354.0 13359.0 13139.0 13350.0 13192.0 13193.0 13303.0 13440.0 13087.0 13356.0 13522.0 13606.0 13383.0 13388.0 13409.0 13262.0 13598.0 13366.0 13327.0 13297.0 13324.0 13296.0 13381.0 13052.0 13255.0 13217.0 13194.0 13062.0 13087.0 13027.0 12861.0 13012.0 12936.0 12770.0 12529.0 12534.0 12000.0 11833.0 11143.0 10561.0 9961.0 9237.0 8439.0 7570.0 6576.0 5774.0 4829.0 3967.0 3232.0 2562.0 2004.0 1570.0 1143.0 822.0 653.0 465.0 327.0 268.0 226.0 163.0 131.0 143.0 101.0 88.0 77.0 58.0 59.0 52.0 50.0 50.0 49.0 43.0 41.0 39.0 39.0 38.0 27.0 35.0 35.0 37.0 28.0 32.0 32.0 18.0 28.0 26.0 26.0 24.0 12.0 28.0 23.0 21.0 22.0 18.0 19.0 14.0 22.0 18.0 20.0 14.0 20.0 18.0 17.0 12.0 21.0 17.0 13.0 15.0 24.0 19.0 13.0 14.0 15.0 19.0 13.0 20.0 13.0 17.0 9.0 12.0 16.0 13.0 14.0 13.0 9.0 13.0 13.0 13.0 10.0 11.0 11.0 16.0 19.0 12.0 18.0 10.0 17.0 10.0 11.0 11.0 8.0 16.0 13.0 11.0 18.0 15.0 6.0 10.0 9.0 10.0 11.0 9.0 10.0 8.0 14.0 8.0 9.0 9.0 6.0 5.0 9.0 12.0 9.0 11.0 8.0 13.0 10.0 6.0 7.0 9.0 6.0 13.0 10.0 12.0 12.0 13.0 8.0 13.0 8.0 9.0 7.0 12.0 10.0 9.0 9.0 8.0 7.0 15.0 9.0 8.0 12.0 10.0 9.0 12.0 8.0 10.0 9.0 7.0 9.0 9.0 15.0 11.0 8.0 9.0 12.0 9.0 8.0 15.0 8.0 11.0 10.0 14.0 6.0 13.0 12.0 12.0 10.0 11.0 6.0 22.0 16.0 6.0 7.0 11.0 9.0 13.0 12.0 6.0 8.0 10.0 11.0 10.0 8.0 12.0 11.0 10.0 10.0 4.0 8.0 7.0 6.0 11.0 10.0 6.0 11.0 10.0 2.0 8.0 12.0 10.0 11.0 11.0 12.0 11.0 5.0 8.0 11.0 11.0 10.0 10.0 11.0 11.0 8.0 13.0 10.0 11.0 7.0 8.0 7.0 10.0 6.0 3.0 17.0 7.0 8.0 5.0 12.0 10.0 8.0 7.0 11.0 4.0 10.0 12.0 7.0 10.0 8.0 5.0 9.0 9.0 9.0 9.0 9.0 9.0 8.0 5.0 7.0 9.0</y>
</simpledata>
<datafile>
<filename>RBS2PT50CO50_30.odf</filename>
</datafile>
</data>
<process>
<simulations>
<simulation/>
</simulations>
</process>
</spectrum>
</spectra>
<elementsandmolecules>
<molecules>
<nmolecules>3</nmolecules>
<molecule>
<name>Co 1 Pt 1</name>
<density units="1e22at/cm3"></density>
<concentrationmin>0</concentrationmin>
<concentrationmax>1</concentrationmax>
<depthmin>0</depthmin>
<depthmax>1000</depthmax>
</molecule>
<molecule>
<name>Si 1 O 2</name>
<density units="1e22at/cm3"></density>
<concentrationmin>0</concentrationmin>
<concentrationmax>1</concentrationmax>
<depthmin>0</depthmin>
<depthmax>1000</depthmax>
</molecule>
<molecule>
<name>Si</name>
<density units="1e22at/cm3"></density>
<concentrationmin>0</concentrationmin>
<concentrationmax>1</concentrationmax>
<depthmin>300</depthmin>
<depthmax>1e6</depthmax>
</molecule>
</molecules>
</elementsandmolecules>
</sample>
</idf>
[ ]:
